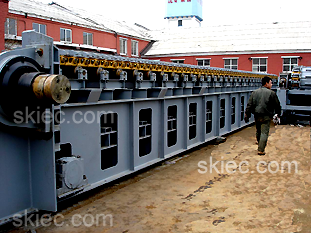

¡Apron Feeder

Since the first set of Apron Feeder  had been supplied in China, SMMC have more than 40 years experience of manufacturing Apron Feeder. SMMC kept the leading position to supply this machine. And we kept the records of apron feeder supplied experience( for example: the widest[3400×8000 mm], the longest [1600×43000 mm] and the largest capacity [4500 t/h]).
In the year of 1986, SMMC introduced the know-how of Apron Feeder (MAMMUT Crushing System) from O&K company Germany and thus forming a complete line for crushing non-metal minerals.
¡
SMMC's Apron Feeders have almost one hundred of models ranged from five categories: light, medium and heavy-duty type Apron Feeder, PB type and new type Apron Feeder based on the imported know-how.

¡ The width varies from 500 to 3,400 mm and capacity ranges from 60 to 4,500 t/h. SMMC can satisfy your selections of  Apron Feeders which suitable for different working conditions. SMMC can also design and manufacture as per your special requirements.



¡ For scores of  years, we have provided more than thousand of Apron Feeders to various industrial fields and spread to Pakistan, Thailand, Philippines, Iran, Vietnam, Zimbabwe and other countries.


<<<Back   [1] [2] [3]



















Features of SMMC's Apron Feeder:

¡Pans is of punching and welding structure. No material spile from the spliced pans.
¡Pan running is not deviated because the pans are driven by two chains.
¡Feeding speed can be automatically adjusted as per the load on the crusher.
¡The mounting inclination angle is up to 25°. The crushing system can be reasonably and compactly arranged.
¡The base precision has no affection on the gear engagement because of the use of one-point floating support  the drive unit.
¡ Easy for maintenance and services.
¡ Standard caterpillar chains.
¡ Speed regulating drive may be chosen, i.e., frequency varying motor, DC motor, difference motor and hydraulic motor etc.
¡ Components that transmit torque can be fitted without key connection. It is convenient for disassembling  and maintenance.
